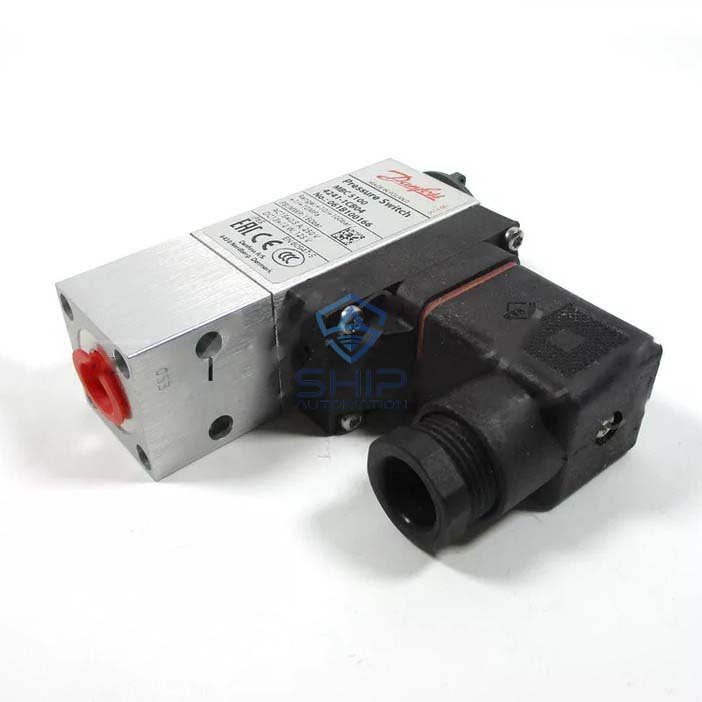

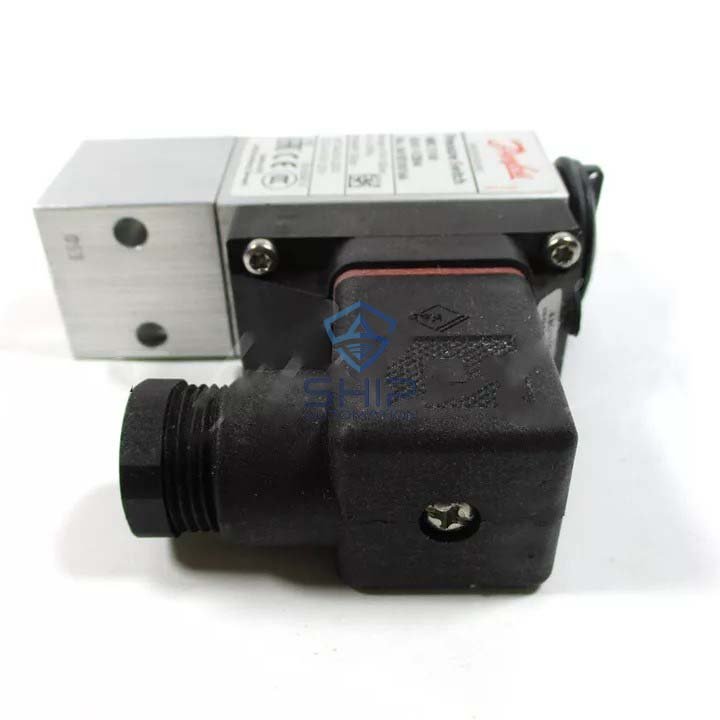

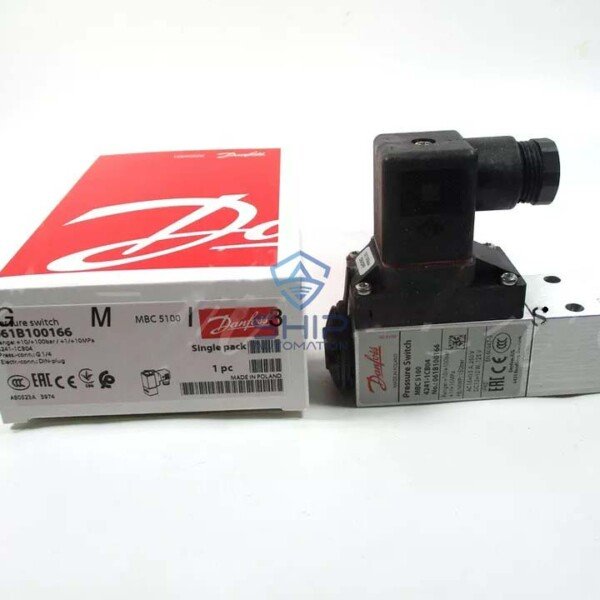

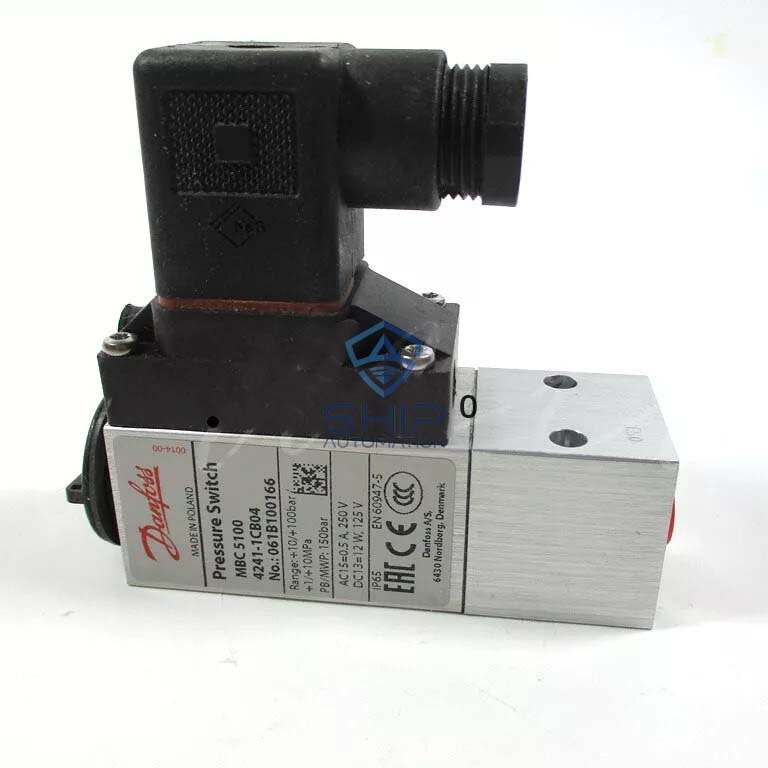

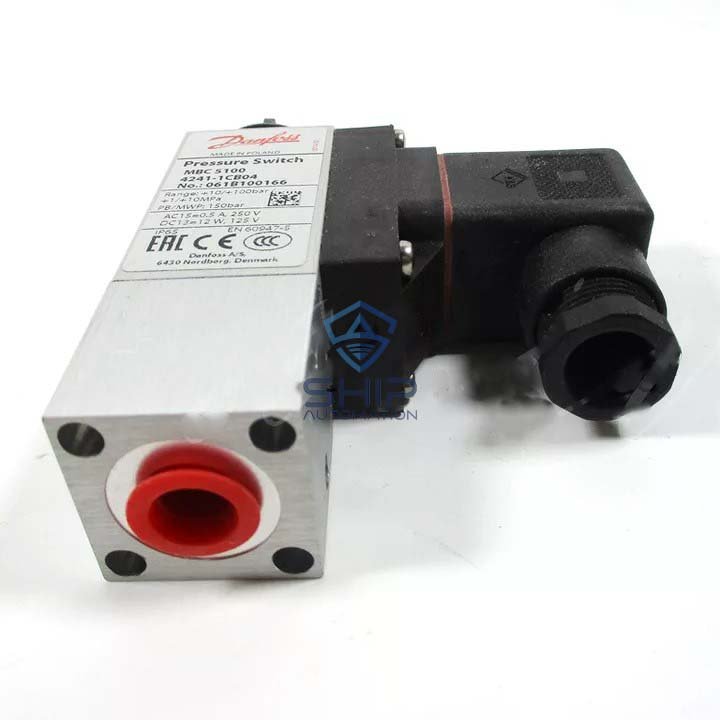

Danfoss 061B100166

Categories: Danfoss MBC 5100, Pressure switch SKU:
  • Maker : Danfoss
  • Model : MBC 5100
  • Type : 4241-1CB04
  • Code : 061B100166
  • Range : 10 to 100 bars
  • Connection Size:G – 1/4 Flange

Ship Automation can supply all the types of Danfoss MBC 5100 Pressure Switches.

For more information , please contact us on info@shipautomation.com

Characteristics

Meausured value: Application domain:

MBC pressure switches are used in industrial and marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our block design to survive in the harsh conditions known from machine rooms onboard ships. MBCs have high vibration resistance and MBC 5100 features all common marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC.

  • Maker : Danfoss
  • Type : High Pressure Switch
  • Model : MBC 5100
  • Type Designation : 4241-1CB04
  • Code : 061B100166
  • Setting Range : 10 to 100 bars
  • Differential at min.: 1.00 bars
  • Differential at max.: 2.50 bars
  • Permissible operation pressure : 150.00 bars
  • Connection Size:G – 1/4 Female
  • Electrical Connection : EN 175301-803-A Pg 11
  • Maker : Danfoss
  • Type : High Pressure Switch
  • Model : MBC 5100
  • Type Designation : 4241-1CB04
  • Code : 061B100166
  • Setting Range : 10 to 100 bars
  • Differential at min.: 1.00 bars
  • Differential at max.: 2.50 bars
  • Permissible operation pressure : 150.00 bars
  • Connection Size:G – 1/4 Female
  • Electrical Connection : EN 175301-803-A Pg 11

Danfoss MBC 5100 Block-type compact pressure switches for marine applications

Code no.

Regul. range [bar] Pe

Diff.@Min. range setting [bar]

Diff.@Max. range setting [bar]

Max. working pressure [bar] Pe

Pressure conn.

Pressure conn.notes

El. conn.

061B000066

-0,20 – 10,00 bar

0,40 bar

0,60 bar

15,0 bar

G 1/4

EN 175301-803-A Pg 11

061B000166

5,00 – 30,00 bar

0,90 bar

2,00 bar

45,0 bar

G 1/4

EN 175301-803-A Pg 11

061B000266

-0,20 – 10,00 bar

0,40 bar

0,60 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B000366

5,00 – 30,00 bar

0,90 bar

2,00 bar

45,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B000466

-0,20 – 4,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B000566

-0,20 – 1,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B000766

1,00 – 6,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B001066

-0,20 – 4,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

EN 175301-803-A Pg 11

061B001266

-0,20 – 10,00 bar

0,40 bar

0,60 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B002166

-0,20 – 4,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B002966

0,50 – 3,00 bar

0,25 bar

0,30 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B006666

-0,20 – 10,00 bar

0,40 bar

0,60 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B010066

-0,20 – 10,00 bar

0,40 bar

0,60 bar

15,0 bar

G 1/4

EN 175301-803-A Pg 13.5

061B010266

-0,20 – 10,00 bar

0,40 bar

0,60 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B010366

5,00 – 30,00 bar

0,90 bar

2,00 bar

45,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B010466

-0,20 – 4,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B010566

-0,20 – 1,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B010966

-0,20 – 1,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

EN 175301-803-A Pg 13.5

061B011066

-0,20 – 4,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

EN 175301-803-A Pg 13.5

061B012866

-0,20 – 4,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B013066

-0,20 – 4,00 bar

0,30 bar

0,45 bar

15,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B100066

5,00 – 20,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

EN 175301-803-A Pg 11

061B100166

10,00 – 100,00 bar

4,00 bar

12,00 bar

150,0 bar

G 1/4

EN 175301-803-A Pg 11

061B100266

5,00 – 20,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B100366

10,00 – 100,00 bar

4,00 bar

12,00 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B100466

1,00 – 10,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B100566

5,00 – 40,00 bar

2,00 bar

7,00 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B100766

5,00 – 40,00 bar

2,00 bar

7,00 bar

150,0 bar

G 1/4

EN 175301-803-A Pg 11

061B100866

1,00 – 10,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

EN 175301-803-A Pg 11

061B100966

1,00 – 6,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B101766

0,50 – 3,00 bar

0,50 bar

0,80 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B102366

0,50 – 3,00 bar

0,50 bar

0,80 bar

150,0 bar

G 1/4

EN 175301-803-A Pg 11

061B102466

5,00 – 25,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 11

061B102966

1,00 – 6,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B110066

5,00 – 20,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

EN 175301-803-A Pg 13.5

061B110266

5,00 – 20,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B110366

10,00 – 100,00 bar

4,00 bar

12,00 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B110466

1,00 – 10,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B110566

5,00 – 40,00 bar

2,00 bar

7,00 bar

150,0 bar

G 1/4

With flange

EN 175301-803-A Pg 13.5

061B110766

5,00 – 40,00 bar

2,00 bar

7,00 bar

150,0 bar

G 1/4

EN 175301-803-A Pg 13.5

061B110866

1,00 – 10,00 bar

1,00 bar

2,50 bar

150,0 bar

G 1/4

EN 175301-803-A Pg 13.5

061B510066

16,00 – 160,00 bar

15,00 bar

30,00 bar

600,0 bar

G 1/4

EN 175301-803-A Pg 11

061B510166

25,00 – 250,00 bar

20,00 bar

40,00 bar

600,0 bar

G 1/4

EN 175301-803-A Pg 11

061B510266

40,00 – 400,00 bar

20,00 bar

50,00 bar

600,0 bar

G 1/4

EN 175301-803-A Pg 11
