Home » Danfoss MBC 5100 » Danfoss MBC 5100-3421-1CB04 | Pressure Switch (061B000166)

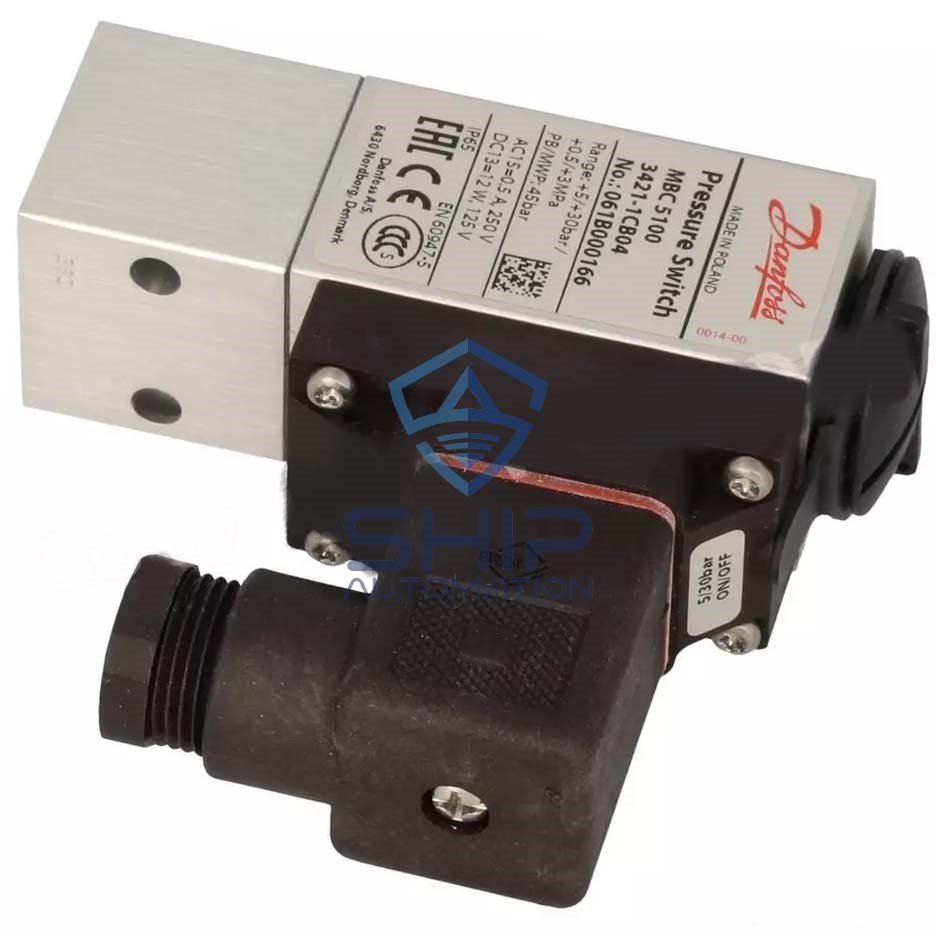

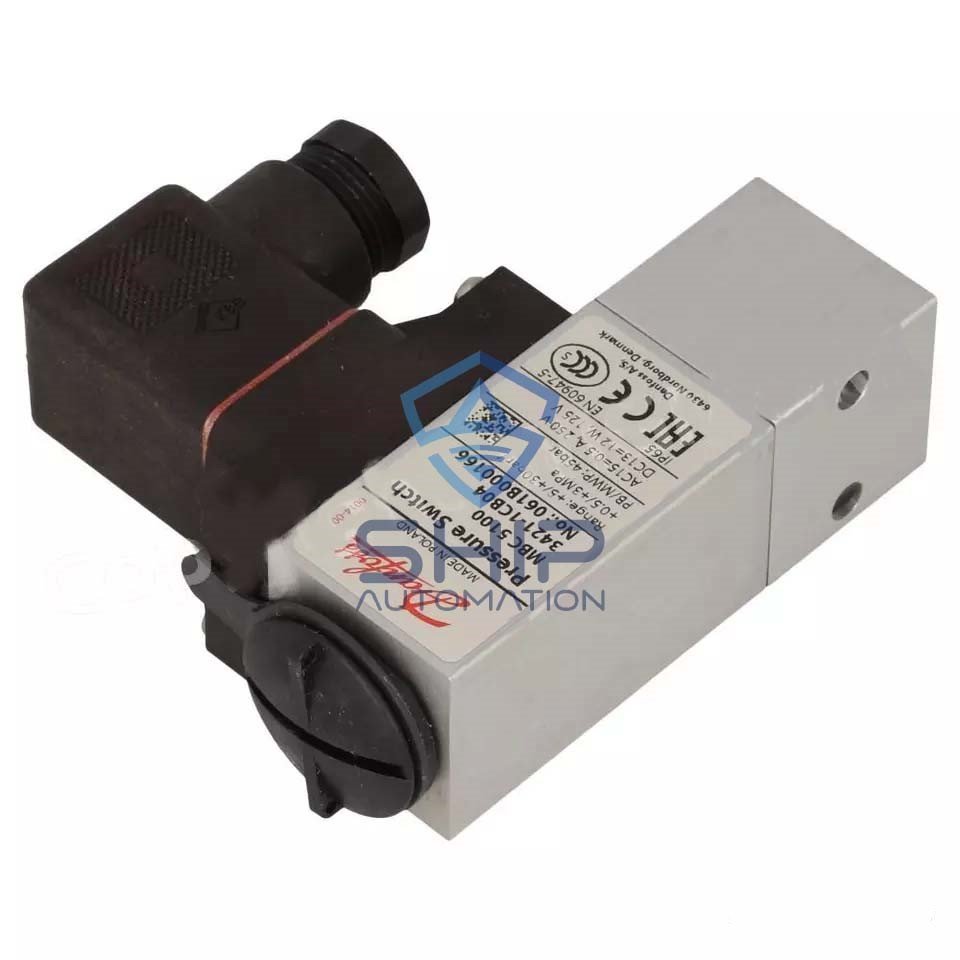

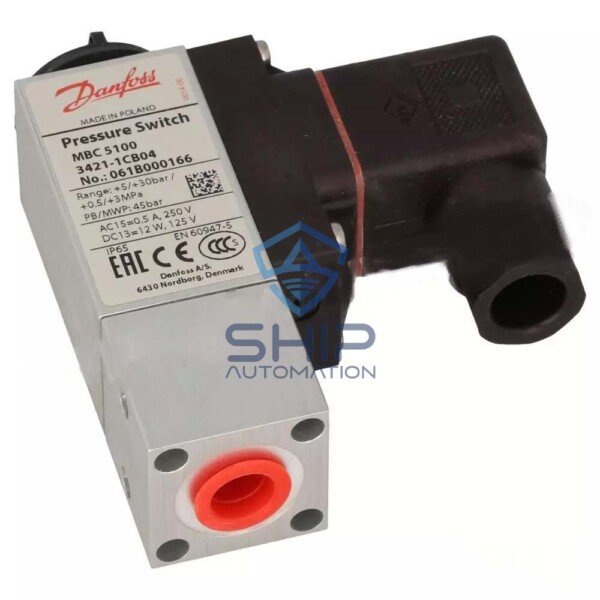

Danfoss MBC 5100-3421-1CB04 | Pressure Switch (061B000166)

Specification

  • Maker : Danfoss
  • Model : MBC 5100-3421-1CB04
  • P/N : 061B000166
  • Range : 5 – 30 bar
  • Connection Size : G-1/4 Female
  • Description : Pressure Switch

Ship Automation can supply new and refurbished parts of Danfoss.

To receive quote for Danfoss MBC 5100-3421-1CB04 | Pressure Switch (061B000166) kindly email us on info@shipautomation.com

REVIEWS DESCRIPTION TECHNICAL DATA DOWNLOADS ORDERING INFORMATION

  • I have been communicating with Mr Sagar for my technical needs. He has been fair, understanding and accommodating towards my inquiries. I look forward to more future dealings with him

    Wong Yee

  • Have been using their supply so far for our vessels, so far the item is good and some obsolute item could be found by them.

    Tech Nik

  • We have been dealing with Mr. Manan! Excellent cooperation and all items purchased are packaged professionally and arriving in time and in good working condition! Rare to find a shop in India dealing in such a good way!

    CHB

  • We had been dealing with M/s Ship Automation for the ship automation and electrical spares for over 3years now....Always had a good experience throughout the purchase process! The parts offered are of superior quality and arrive promptly! We will continue to have M/s Ship Automation as our partner in spare part supplies....Rgds, Vinod Kaimal - Vibspectrum International LLC-Dubai

    Vinod Kaimal
View All Reviews

MBC pressure switches are used in industrial and marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our block design to survive in the harsh conditions known from machine rooms onboard ships. MBCs have high vibration resistance and MBC 5100 features all common marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC.

  • Maker : Danfoss
  • Type : High Pressure Switch
  • Model : MBC 5100
  • Type Designation : 3421-1CB04
  • Code : 061B000166
  • Setting Range : 5.00 – 30.00 bars
  • Differential at min.: 0.90 bars
  • Differential at max.: 2.00 bars
  • Permissible operation pressure : 45.00 bars
  • Connection Size:G – 1/4 Female
  • Electrical Connection : EN 175301-803-A Pg 11
  • Maker : Danfoss
  • Type : High Pressure Switch
  • Model : MBC 5100
  • Type Designation : 3421-1CB04
  • Code : 061B000166
  • Setting Range : 5.00 – 30.00 bars
  • Differential at min.: 0.90 bars
  • Differential at max.: 2.00 bars
  • Permissible operation pressure : 45.00 bars
  • Connection Size:G – 1/4 Female
  • Electrical Connection : EN 175301-803-A Pg 11
Download PDF
Danfoss MBC 5100 Block-type compact pressure switches for marine applications
Code no. Regul. range [bar] Pe Diff.@Min. range setting [bar] Diff.@Max. range setting [bar] Max. working pressure [bar] Pe Pressure conn. Pressure conn.notes El. conn.
061B000066 -0,20 – 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 – EN 175301-803-A Pg 11
061B000166 5,00 – 30,00 bar 0,90 bar 2,00 bar 45,0 bar G 1/4 – EN 175301-803-A Pg 11
061B000266 -0,20 – 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B000366 5,00 – 30,00 bar 0,90 bar 2,00 bar 45,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B000466 -0,20 – 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B000566 -0,20 – 1,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B000766 1,00 – 6,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B001066 -0,20 – 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 – EN 175301-803-A Pg 11
061B001266 -0,20 – 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B002166 -0,20 – 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B002966 0,50 – 3,00 bar 0,25 bar 0,30 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B006666 -0,20 – 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B010066 -0,20 – 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 – EN 175301-803-A Pg 13.5
061B010266 -0,20 – 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B010366 5,00 – 30,00 bar 0,90 bar 2,00 bar 45,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B010466 -0,20 – 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B010566 -0,20 – 1,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B010966 -0,20 – 1,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 – EN 175301-803-A Pg 13.5
061B011066 -0,20 – 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 – EN 175301-803-A Pg 13.5
061B012866 -0,20 – 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B013066 -0,20 – 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B100066 5,00 – 20,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 – EN 175301-803-A Pg 11
061B100166 10,00 – 100,00 bar 4,00 bar 12,00 bar 150,0 bar G 1/4 – EN 175301-803-A Pg 11
061B100266 5,00 – 20,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B100366 10,00 – 100,00 bar 4,00 bar 12,00 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B100466 1,00 – 10,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B100566 5,00 – 40,00 bar 2,00 bar 7,00 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B100766 5,00 – 40,00 bar 2,00 bar 7,00 bar 150,0 bar G 1/4 – EN 175301-803-A Pg 11
061B100866 1,00 – 10,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 – EN 175301-803-A Pg 11
061B100966 1,00 – 6,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B101766 0,50 – 3,00 bar 0,50 bar 0,80 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B102366 0,50 – 3,00 bar 0,50 bar 0,80 bar 150,0 bar G 1/4 – EN 175301-803-A Pg 11
061B102466 5,00 – 25,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11
061B102966 1,00 – 6,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B110066 5,00 – 20,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 – EN 175301-803-A Pg 13.5
061B110266 5,00 – 20,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B110366 10,00 – 100,00 bar 4,00 bar 12,00 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B110466 1,00 – 10,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B110566 5,00 – 40,00 bar 2,00 bar 7,00 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5
061B110766 5,00 – 40,00 bar 2,00 bar 7,00 bar 150,0 bar G 1/4 – EN 175301-803-A Pg 13.5
061B110866 1,00 – 10,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 – EN 175301-803-A Pg 13.5
061B510066 16,00 – 160,00 bar 15,00 bar 30,00 bar 600,0 bar G 1/4 – EN 175301-803-A Pg 11
061B510166 25,00 – 250,00 bar 20,00 bar 40,00 bar 600,0 bar G 1/4 – EN 175301-803-A Pg 11
061B510266 40,00 – 400,00 bar 20,00 bar 50,00 bar 600,0 bar G 1/4 – EN 175301-803-A Pg 11
