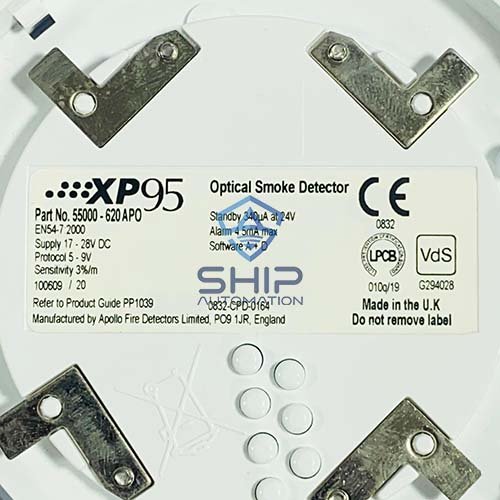

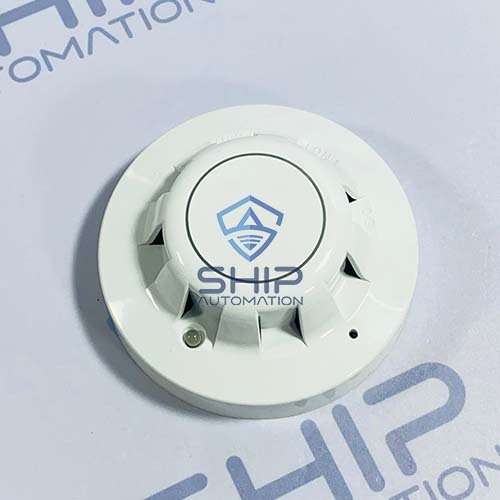

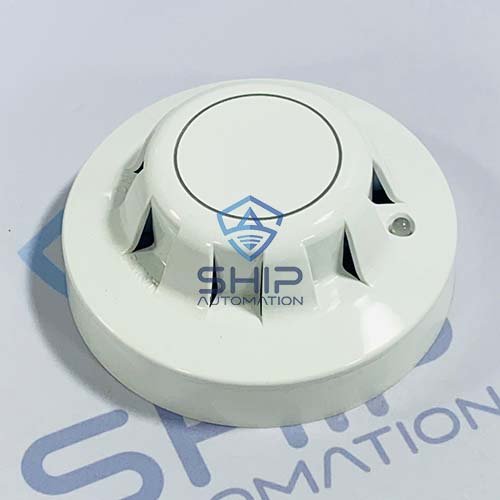

Apollo XP95 55000-620 APO | Optical Smoke Detector

Specification

  • Maker : Apollo
  • Model : XP95
  • Description : Optical smoke detector
  • Part no : 55000-620 APO
  • Condition : New & Surplus

Ship Automation can supply New and refurbished spare parts of Apollo.

To receive quote for Apollo XP95 55000-620 APO | Optical Smoke Detector, please contact us on info@shipautomation.com



  • I have been communicating with Mr Sagar for my technical needs. He has been fair, understanding and accommodating towards my inquiries. I look forward to more future dealings with him

    Wong Yee
  • Have been using their supply so far for our vessels, so far the item is good and some obsolute item could be found by them.

    Tech Nik
  • We have been dealing with Mr. Manan! Excellent cooperation and all items purchased are packaged professionally and arriving in time and in good working condition! Rare to find a shop in India dealing in such a good way!

    CHB
  • We had been dealing with M/s Ship Automation for the ship automation and electrical spares for over 3years now....Always had a good experience throughout the purchase process! The parts offered are of superior quality and arrive promptly! We will continue to have M/s Ship Automation as our partner in spare part supplies....Rgds, Vinod Kaimal - Vibspectrum International LLC-Dubai

    Vinod Kaimal

The XP95 Optical Smoke detector uses an internal pulsing infrared LED and a photo-diode at an obtuse angle. In clear air conditions the photo-diode in the XP95 detector receives no light from the LED and produces a corresponding analogue signal. The signal increases when smoke enters the chamber and light is scattered onto the photo-diode. The optical smoke detector has a clear indicator LED which emits red light when the detector is in alarm.

General
Applications
  • Escape routes
  • Hotels
  • Offices
  • Restaurants
  • Retail
  • Bedrooms
  • Medium to large buildings
Fire Type Slow burning, smouldering fires
Warranty 10 year
Performance
Analogue Value Nominal 7
Analogue Value (- Tolerance) 7
Analogue Value (+ Tolerance) 7
Analogue Value 25 +7/-7
Alarm Level Analogue Value 55
Chamber Type Chevron
Electrical
Protocol Voltage (Min) 5V
Protocol Voltage (Max) 9V
Protocol Voltage 5 to 9V peak to peak
Power-Up Surge Current 1mA
Maximum Power-Up Time 4 seconds
Alarm Current, LED Illuminated 4mA
Status Indicator – Alarm Red
Status Indicator – Fault Off
Quiescent Current 340μA
Supply Voltage (Min) 17V dc
Supply Voltage (Max) 28V dc
Supply Voltage (Vmin-Vmax) 17 to 28V dc
Sampling Frequency Once per second
Sampling Frequency +L2 Loop in & out positive, double terminal
Terminal Functions L1 In -L1 in Loop in & out, double terminal
Terminal Functions +R +R Remote indicator positive connection
Terminal Functions -R -R Remote indicator negative connection
Polarity L1 & L2 are polarity insensitive
Alarm Current (At 24 Volts) 4.34mA
Remote LED Current 4mA
Battery Powered No
Environmental
Humidity (Min) 0% RH
Humidity (Max) 95% RH
Humidity Note no condensation or icing
Humidity 0% to 95% (no condensation or icing)
Operating Temperature (Min) -20°C
Operating Temperature (Max) 60°C
Operating Temperature -20 to 60°C
IP Rating Value IP44
Effect Of Wind Speed None
Storage Temperature (Min) -30°C
Storage Temperature (Max) 80°C
Storage Temperature -30 to 80°C
Conformance
Standards EN 54-7
Approvals
  • FG
  • BOSEC
  • CCCf
  • CPR
  • LPCB
  • SBSC
  • VdS
Mechanical
Weight 105g
Colour White
Materials Housing Polycarbonate
Materials Terminals Nickel plated stainless steel
Product Length 42mm
Product Diameter 100mm
Detection Principle Photo-electric light scattering.
Sensor Configuration Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
