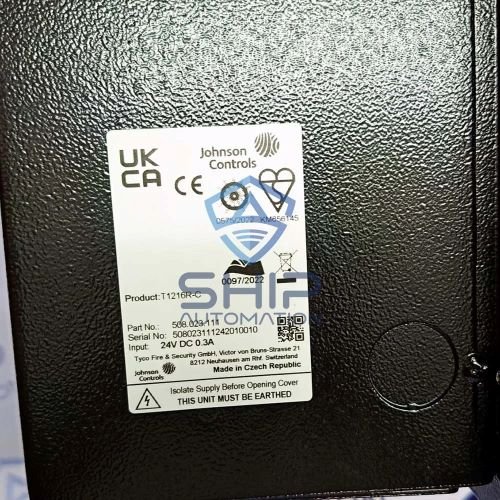

The Tyco T1216R-C (508.023.111) is a 16-zone marine conventional fire alarm repeater panel designed for the Tyco T1200 fire detection system. It operates as a remote repeater, duplicating fire alarm indications and key user controls from the main panel at another location on the vessel.
Features
- 16-zone conventional fire alarm repeater.
- Duplicates fire alarm indications from the main T1200 panel.
- Provides remote access to main user controls.
- Designed specifically for marine fire detection applications.
- 24 VDC operation for shipboard installations.
- Can be installed in a console or bulkhead-mounted configuration.
- Up to five repeaters can be connected to a single panel, according to available product information.
- Suitable for distributed fire alarm monitoring at different locations on a vessel.
- Robust enclosure designed for marine environments subject to temperature, humidity and vibration.
- Suitable as a replacement unit for existing T1200/T1216R-C installations.
Typical Applications
- Marine fire detection systems
- Shipboard fire alarm repeater stations
- Engine-room monitoring locations
- Bridge and control-room fire alarm indication
- Accommodation-area fire alarm monitoring
- Offshore and commercial vessels
- Remote monitoring of T1200 16-zone fire alarm panels
