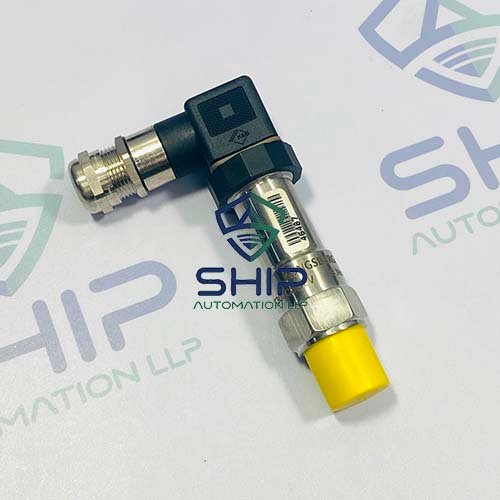

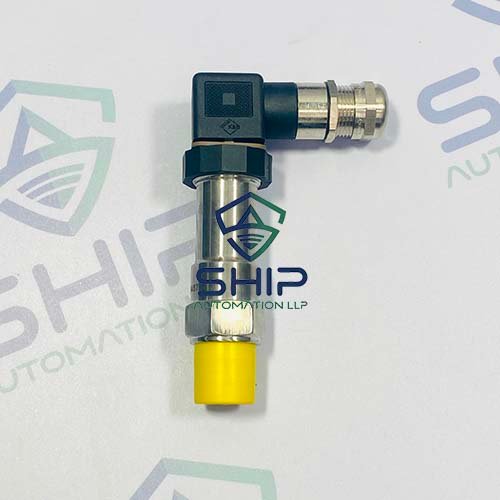

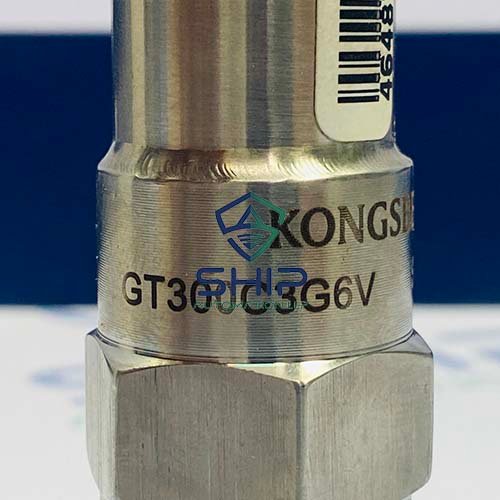

The Kongsberg GT300C3G6V is a robust pressure transmitter designed for general-purpose marine instrumentation and engine-room applications. It can be installed directly at the pressure measurement point or mounted using a bracket on a bulkhead with a control valve. The transmitter is designed to provide reliable pressure monitoring in shipboard automation and control systems.
Key Features
- Marine-grade pressure transmitter for shipboard applications
- Designed for engine-room pressure measurement
- Accuracy of less than ±0.5% of full-range output
- Wide pressure capability depending on configuration
- 24 VDC supply
- IP56 enclosure protection
- 1/2″ and 1/4″ pressure connection options
- DIN-plug electrical connection with M-gland
- Good long-term measurement stability
- Suitable for direct or bracket mounting
- Supported by marine classification/type approvals; Kongsberg currently lists GT300-series approvals from ABS, Bureau Veritas, China Classification Society and Lloyd’s Register.
Typical Applications
- Main engine pressure monitoring
- Lubricating-oil pressure
- Fuel-oil pressure
- Cooling-water pressure
- Hydraulic pressure
- Pump suction/discharge pressure
- Compressor systems
- Engine-room automation
- General marine process-pressure measurement
