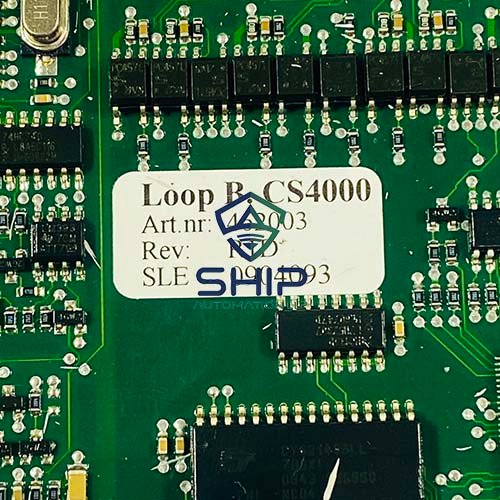

Consilium Loop Board (462003)
CS4000 Loop Board PCB
Maker : Consilium
Model : Loop Board PCB
Art no : 462003
Rev : R1D
Description : CS4000 Loop Board PCB
Condition : New & Surplus
To request quote for Consilium Loop Board (462003), Kindly email us on info@shipautomation.com
Request A Free Quote
- Board name: LB3 Loop Board
- Part number: 462003
- Function: Interface board for 3 analogue addressable detector loops
- Capacity: Up to 254 loop devices per loop (maximum 762 devices across three loops, subject to system configuration)
- Nominal voltage: 27 VDC
- Operating voltage: 19–30 VDC
- Current consumption: Approximately 340 mA
- Dimensions: 247 × 127 × 25 mm
- Addressing: 8-position DIP switch, configurable addresses 1–255
- Operating temperature: 0 °C to +55 °C
