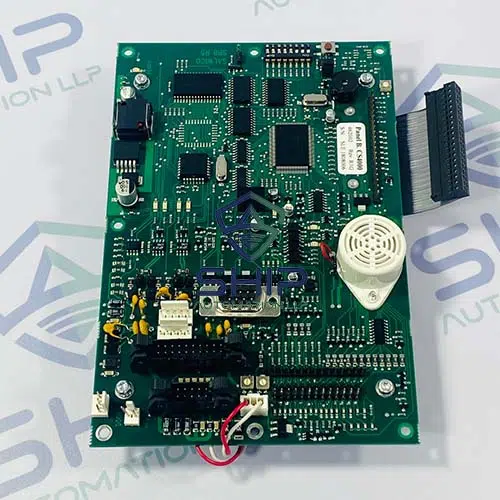

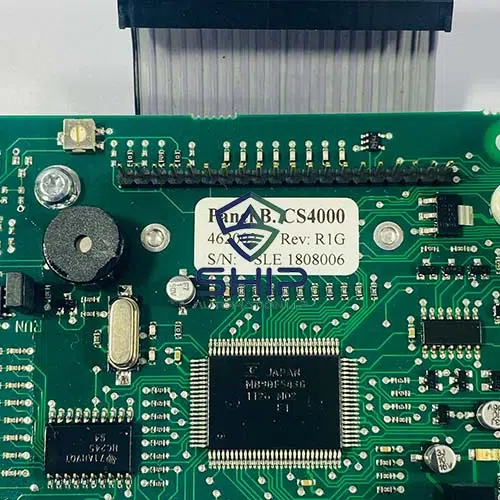

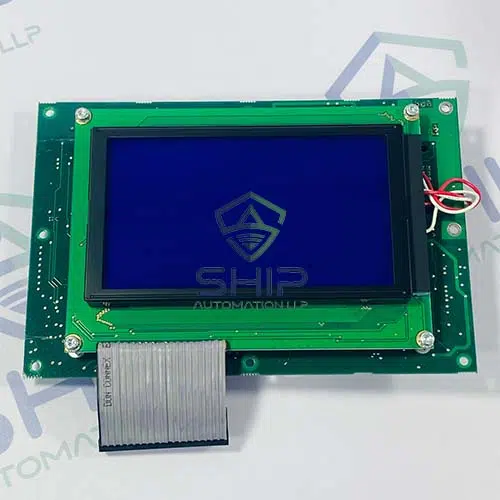

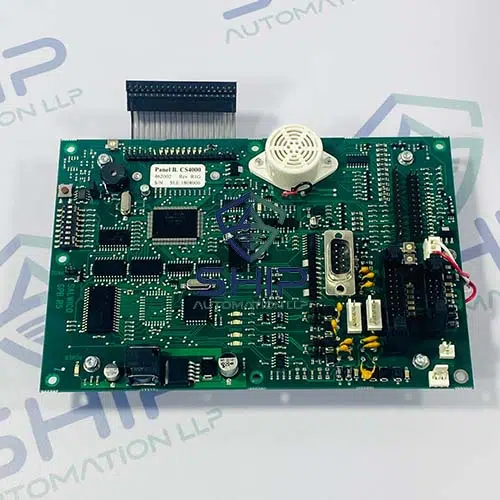

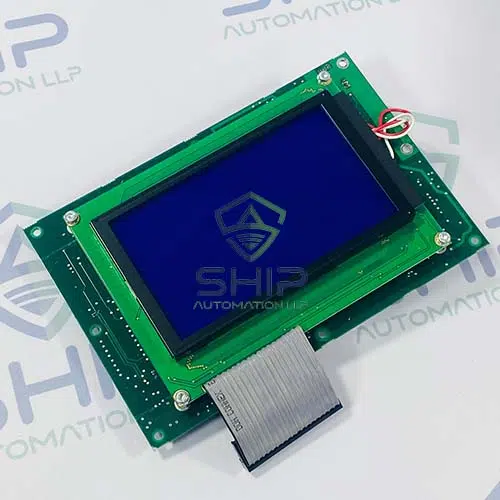

The Consilium 462002 is the PB (Panel Board) for the Salwico CS4000 fire alarm system. It works with the alphanumeric display, keyboard, terminal board and cabinet to form the system’s control/repeater panel, and provides basic I/O plus an isolated RS232 interface.
Key Features
- Main Panel Board (PB) for the Salwico CS4000 system.
- Works with the alphanumeric display and system keyboard.
- Provides operator control and system status indication.
- 8-pole DIP switch for panel-board addressing.
- Supports addresses from 1 to 127.
- Two external system communication channels using RS485.
- Isolated RS232 interface for printer/service communication.
- Dedicated connections for keyboard, display and terminal board.
- Three 24 VDC outputs, each with system-defined output capacity.
- Two local inputs for external contacts.
- Dedicated external buzzer output.
- LED indicators for power, RS485 transmit/receive and RS232 communication.
- Display contrast adjustment through onboard potentiometer.
- Designed for modular CS4000 fire-alarm control/repeater panels.
Typical Applications
- Salwico CS4000 fire alarm control panels.
- Marine and shipboard fire detection systems.
- Offshore platforms and installations.
- Fire alarm repeater/control panels.
- Engine-room and accommodation fire detection systems.
- Industrial fire alarm installations.
- Replacement of existing Consilium 462002 PB Panel Boards.
- CS4000 system refurbishment and maintenance.
