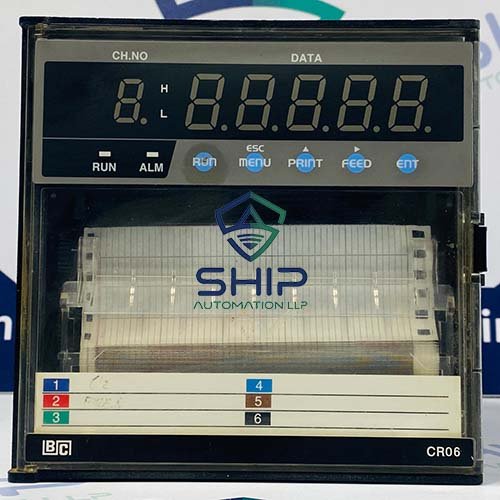

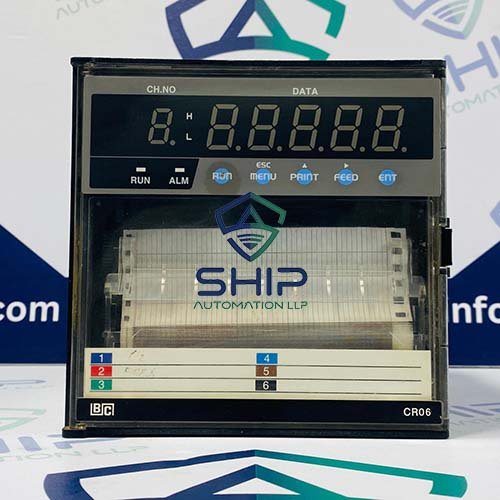

The BrainChild CR06 is a compact 6-channel hybrid chart recorder designed for continuous monitoring and recording of industrial process variables such as temperature, voltage, and current. It supports universal inputs, six-color printing, adjustable chart speeds, and communication interfaces, making it suitable for process monitoring and permanent data recording.
Key Features
- 6-channel multipoint recording
- Universal input support for TC, RTD, voltage and current
- Six-color dot printing for clear channel identification
- Compact 150 mm installation depth
- Adjustable chart speed from 10 to 1500 mm/hr
- RS-232C communication as standard
- Optional RS-485 communication
- Optional 6 alarm relay outputs
- IP65-rated front panel for dust and water resistance
- Front-panel keypad for convenient configuration
- RUN and ALM status indication
- Suitable for continuous process monitoring and historical recording
Typical Applications
- Industrial process monitoring
- Temperature monitoring and recording
- Pressure and process-variable recording
- Marine machinery monitoring panels
- Engine-room monitoring systems
- Boiler and utility monitoring
- Water and wastewater treatment systems
- Chemical and pharmaceutical processes
- Food processing and cold-storage monitoring
- Laboratory testing and data logging
