- Maker : Apollo
- Model : Series 65 BR

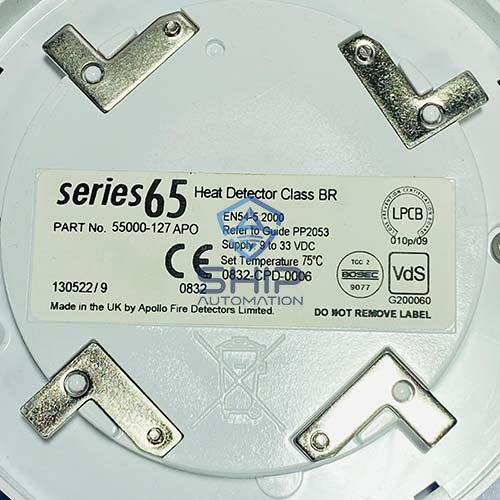

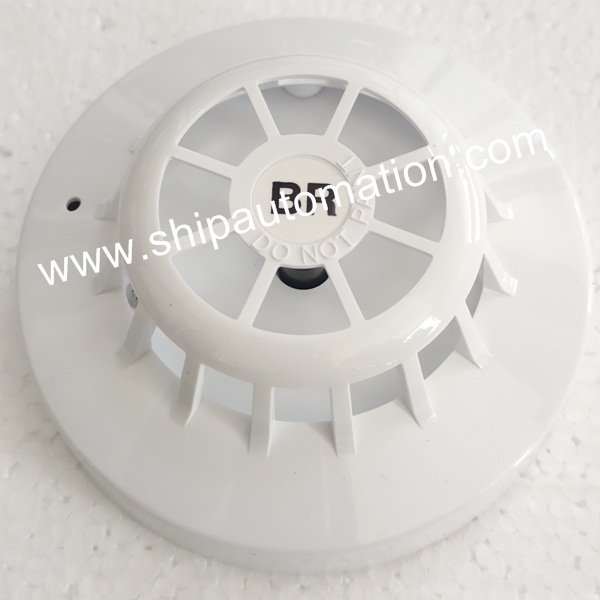

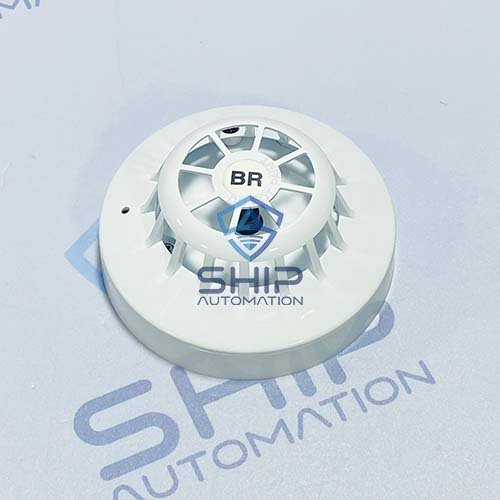

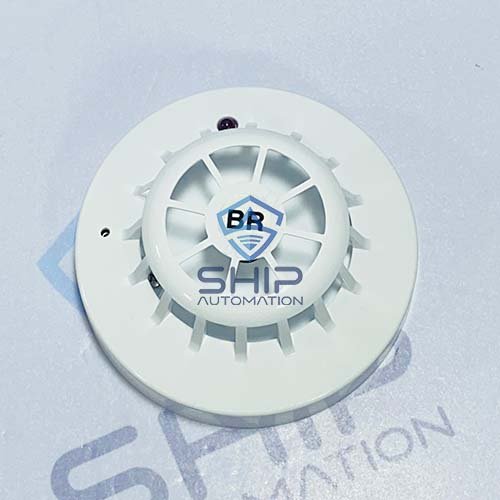

- Description : Heat Detector
- Part No : 55000-127
- Condition : New & Surplus
Ship Automation can supply new and refurbished spare parts of Apollo fire alarm system.
To receive quote for Apollo Series 65 55000-127 APO | BR heat detector, please email us on email@example.com
Series 65 incorporates well-proven sensing technologies, including an Integrated Circuit based on that used in XP95 analogue addressable detectors. The Series 65 range has a wide operating voltage of 9–33V and consists of ionisation, integrating ionisation and optical smoke detectors, four grades of heat detector and a range of bases.
Wide-operating voltage of 9–33 V DC Wide-operating and storage temperature of -20°C to +60°C Can be used on security systems Electrically and mechanically compatible with Series 60 Proven detection performance
The detector has a moulded self-extinguishing white polycarbonate case. Nickel plated stainless steel wiper contacts connect the detector to the base. Inside the case a printed circuit board holds the signal processing electronics. A pair of matched negative temperature co-efficient thermistors are mounted on the PCB in such a way that one thermistor is exposed to give good thermal contact with the surrounding air while the other thermistor is thermally insulated. Under stable conditions both thermistors are in thermal equilibrium and have the same value of resistance. If air temperature increases rapidly the resistance of the exposed thermistor becomes less than that of the insulated thermistor. The ratio of the resistance of the thermistors is monitored electronically and an alarm is initiated if the ratio exceeds a factory preset level. This feature determines the ‘rate of rise’ response of the detector. If air temperature increases slowly, no significant resistance difference develops between the thermistors, but at high temperatures a fixed value resistance connected in series with the insulated thermistor becomes significant. When the sum of the resistance of the insulated thermistor and the fixed resistor compared to the resistance of the exposed thermistor reaches a preset value, an alarm is initiated. The value of the fixed resistor is selected to set the detector into alarm state at a specified fixed temperature. The detector signals an alarm state by switching an alarm latch on, increasing the current drawn from the supply from about 50μA to a maximum of about 75mA. This fall in the impedance of the detector is recognised by the control panel as an alarm signal. The alarm current also illuminates the detector integral LED. A remote indicator connected between the L1 IN terminal and the –R terminal will have a voltage equal to the supply voltage less 1 volt across it and so will illuminate. To ensure correct operation of the detector the control panel must be arranged to supply a maximum of 33 volts DC and a minimum of 9 volts DC in normal operation. The supply may fall to 6 volts DC in alarm conditions if a supply current of at least 10mA is available at this voltage. To ensure effective illumination of the integral LED and any remote indicator, the supply to the detector should exceed 12 volts. To restore the detector to quiescent condition, it is necessary to restore a normal temperature level and interrupt the electrical supply to the detector for a minimum of one second.
Response time European Standard EN54–5:2000 classifies heat detectors according to the alarm temperature and ambient operating temperature. Each heat detector classification has a static response (changing to alarm at a preset temperature) and may also have a rate of rise response (changing to alarm at or above a preset increase of temperature). The heat detector classes available in Series 65 are A1R, BR, CR, CS. The suffix R indicates that the detector has been tested and approved as a ‘rate-of-rise’ detector. The suffix ‘S’ indicates that the detector has been tested and approved as a ‘static’ detector.
1. Flashing LED: The integral LED flashes when the detector is in a quiescent state. 2. Magnetic test switch and Flashing LED: A magnetic test switch in the circuit of the detector can be magnetically activated from outside the case to initiate an alarm condition for test and commissioning purposes. A flashing LED, as outlined above, is also included.
The Series 65 Heat Detector monitors temperature by using a dual thermistor network which provides a voltage output proportional to the external air temperature. There are 12 heat detectors in the Series 65 range designed to suit a wide variety of operating conditions.
Can be used for applications where smoke detectors are unsuitable Ideal for environments that are dirty or smoky under natural conditions Wide operating voltage Flashing LED and magnet operated test switch option
|Polarity||L1 & L2 are polarity insensitive|
|Holding Voltage (Min)||6V|
|Holding Voltage (Max)||6V|
|Holding Voltage||6 to 6V|
|Minimum Voltage To Light Alarm LED||12V|
|Alarm Load||420Ω in series with 2V drop|
|Humidity (Min)||0% RH|
|Humidity (Max)||95% RH|
|Humidity Note||no condensation or icing|
|Humidity||0% to 95% (no condensation or icing)|
|Operating Temperature (Min)||20°C|
|Operating Temperature (Max)||90°C|
|Operating Temperature||20 to 90°C|
|IP Rating Value||IP23D|
|Storage Temperature (Min)||-30°C|
|Storage Temperature (Max)||120°C|
|Storage Temperature||-30 to 120°C|
|Materials Terminals||Nickel plated stainless steel|
To download the datasheet for the product , please click on the link below :
To order Apollo Series 65 BR heat detector (P/N : 55000-127 APO ) , please contact us on below :
- Email : Info@shipautomation.com
- M : +91 9624 424242
